PRELIMINARY AND DETAILED STUDIES OF AZZOUNIEH DAM FOR POTABLE WATER AND IRRIGATION
PRELIMINARY AND DETAILED STUDIES OF AZZOUNIEH DAM FOR POTABLE WATER AND IRRIGATION
LEBANON | Project Value: 45 M$ | Type of Services: Detailed Design | 2005

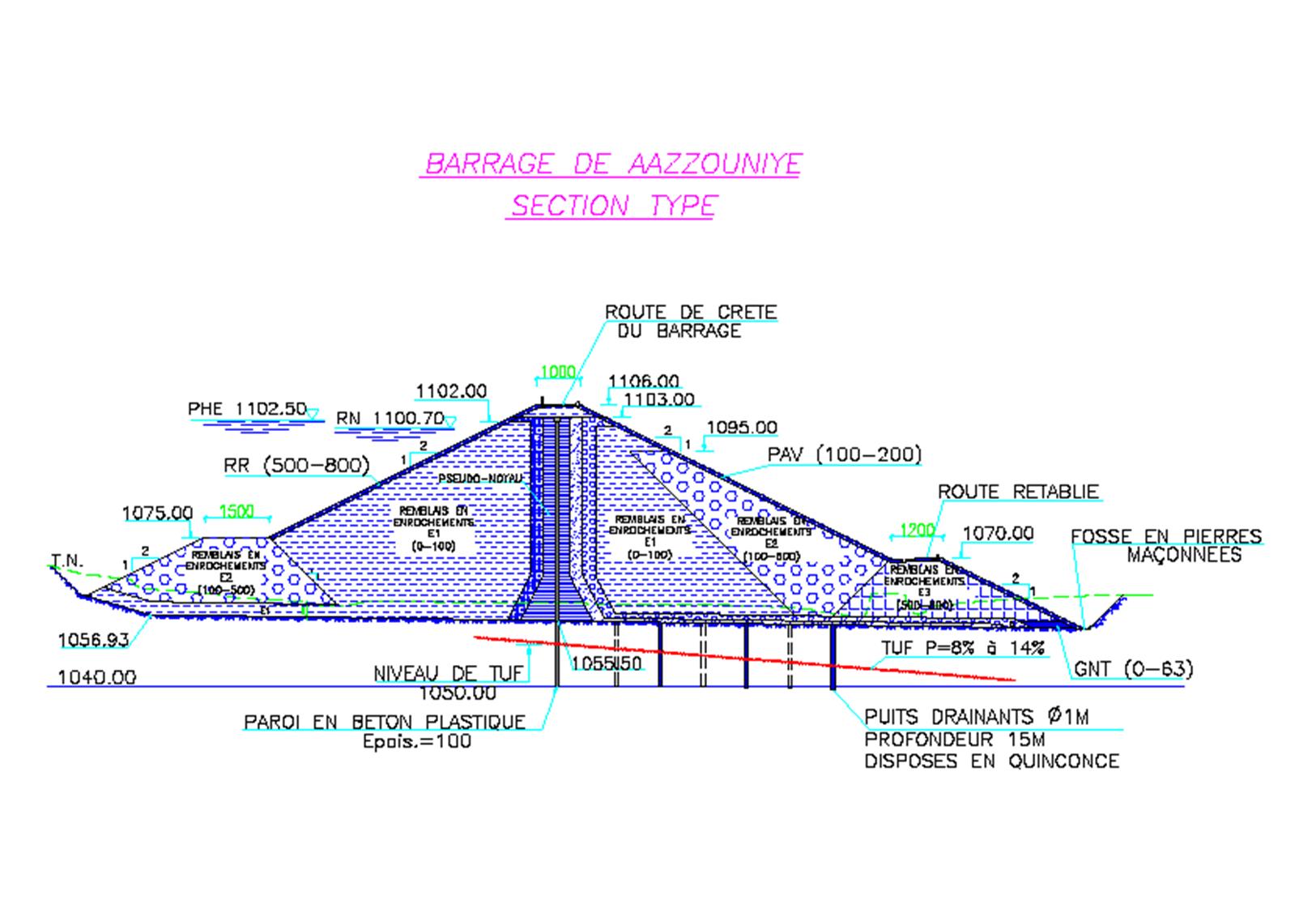

- Embankment dam (height = 53m, length= 300m, volume of the basin = 4.2 Million of m3) with a volcanic tufs heart and a vertical plastic concrete water-proofing wall inside.
- The intake is equipped with 3 multilevel openings and connected to a metallic pipe of 500mm diameter.
The studies include :
- Preliminary study (APS)
- Detailed study (APD)
- Hydrological, geological and geotechnical studies
- Investigations (boreholes, sump pits, trenches, …)
- Embankment dam (height = 53m, length= 300m, volume of the basin = 4.2 Million of m3) with a volcanic tufs heart and a vertical plastic concrete water-proofing wall inside.
- The intake is equipped with 3 multilevel openings and connected to a metallic pipe of 500mm diameter.
The studies include :
- Preliminary study (APS)
- Detailed study (APD)
- Hydrological, geological and geotechnical studies
- Investigations (boreholes, sump pits, trenches, …)
Client: MINISTRY OF ENERGY AND WATER
